Ignition switch conversion for 2013 and earlier

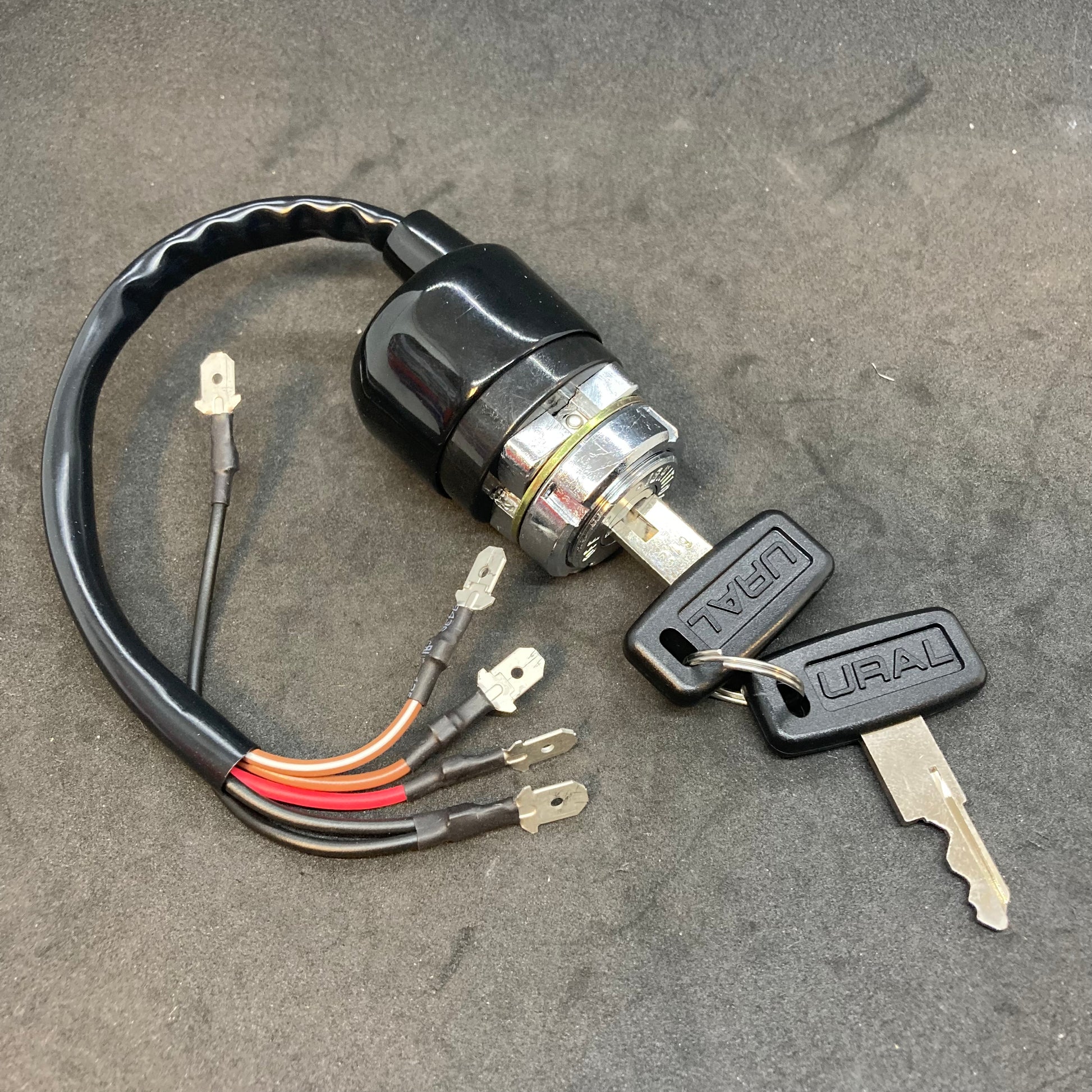

This is what Ural came up with to replace the older Russian-made IMZ-8.103-18050-01 ignition switches that were standard up through 2013. Those ones like to fail in mysterious ways, and this is an improvement in terms of reliability.

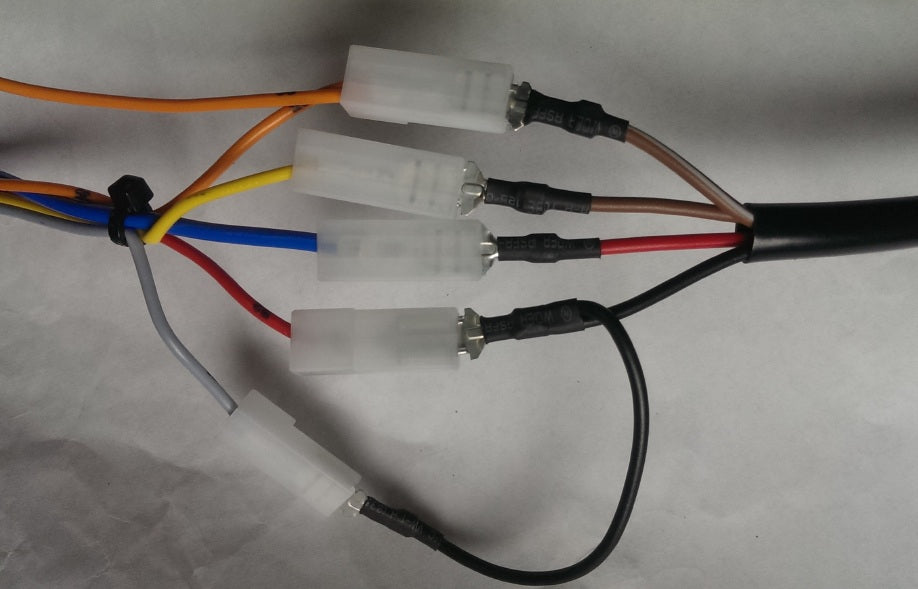

The images show which wires connect where when using this upgrade. Before mounting the ignition switch, though, you'll have to enlarge the original mounting hole to about 7/8". We use a step drill for the task. Be sure to cover up the bare metal with some touch up paint so it doesn't rust too quickly.

If this is out of stock (likely!), you can buy this alternative and wire things up yourself. Or buy one of alternative switches that I've refitted by hand, which costs more but will save you some effort.
